Stander for swage nipples

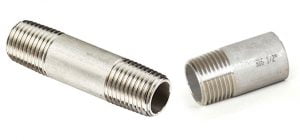

What is a Threaded Swage Nipple?
All swing nipples manufactured by Marcel Piping are made of seamless pipe or drinking material and have the necessary high performance equivalent to straight seamless pipes. We use good quality raw materials (steel pipes, bar stock) for manufacturing stainless steel nipples and carbon steel nipples. The raw materials we use are fully traceable to the mill location through our MTR records. Our products are manufactured to customer specifications and conform to international standards including American Standard (ASTM/ANSI), British Standard (BS), and DIN/European standards. NPT threads of Swage Nipples conform to ANSI/ASME B1.20.1. Our Swage Nipples products are supplied with EN 10204 3.1 Test Certification, with full details of chemical and physical properties of the materials. They are permanently marked with size, time, grade and golden numbers.
ISO 9001:2015 Certified Marcel Piping is the nipple manufacturing expert Swage Nipples are manufactured to MSS-SP-95 (Design Specification), ASME BS 3799, ASTM A105, A350-LF2, A106, A312, A234, A403, ASTM A182 (F304, F304L, F36L, F316). Swages or Swage Nipples are a type of pipe fitting used from one small pipe or casing to another. Some of the grades of swing nipples we manufacture include A234-WPB, A403-WP316, A403-WP304 and A420-WPL6 in sizes from 1/4″ to 8″ for concentric swing nipples and 1/4″ to 4″. for eccentric swing. nipples We can supply Swage Nipples with plain, beveled or threaded ends
Stock Of Threaded Swage Nipple Pressure Ratings, Threaded Swage Nipple Galvanized, Threaded Swage Nipple ASME B16.11
High Quality Threaded Swage Nipple, Threaded Swage Nipple Eccentric Swage, Threaded Swage Nipple Fitting, Threaded Swage Nipple High Quality, Threaded Swage Nipple in China
Threaded Swage Nipple Standard
Size 1/8″ to 8″, DN8 to DN200
Types of Concentric Swage Nipples, Eccentric Swage Nipples
Size MSS SP-95-2006, BS 3799
Raw material A106 Gr. B, A105/A105N, A182 304/304L, A182 316/316L, A312 304/304L, Duplex, A312 316/316L, A350-LF2, Alloy Steel
Product Specifications ASTM A105, A350 LF2, ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)
Connection end PBE: Plain two ends, BBE: Bevel two ends, TBE: Threaded two ends
PSE: Plain, BSE: Bevel, TSE: Thread
PLE: Plain size, BLE: Bevel size, TLE: Thread size
Thickness: Standard, Heavy, Schedule 160 or Double Extra Heavy
End Beveled, Square Cut (socket weld), NPT / BSPT / BSP Threaded Swages, Customer Specification
EN 10204 3.1 Certificate, Raw Material Certificates Available, Inspection and Non-Negative Testing (NDT) Guidelines from NABL Approved Labs
Product Finish Electro-Galvanized Coating, Black Finish, Blackodising Finish, Sandblasting, or Pickled Finish in the case of Stainless Steel Swage Nipples
ASME B16.11 Threaded Swage Nipple Dimensions Standard
ASME: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN 10253-1, EN10253-2
