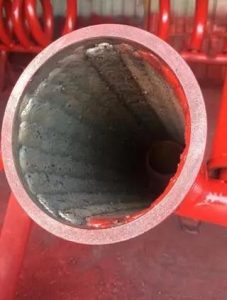

The ceramic lined pipe
The Ceramic Tiles could protect Industrial Components against abrasion, impact wear and high temperature of above 1000°C. Standard Flat Tiles of Square & Rectangular Shape having thickness of 6 to 50 mm, with or without central hole are available.
Description
Characteristics and Production Technology of Ceramic tile lined pipe
Ceramic tile lined pipe using ceramic-metal composite production technology principle, with Al2O3 as raw material.
The Ceramic Tiles could protect Industrial Components against abrasion, impact wear and high temperature of above 1000°C. Standard Flat Tiles of Square & Rectangular Shape having thickness of 6 to 50 mm, with or without central hole are available.
Special Corundum ceramics made of rare metal oxides as solvents and sintered at high temperature by 1730 ℃ through bonding, welding, mosaic, riveting and socket technology, a variety of wear-resistant ceramic pieces, block brick materials in the pipe wear surface, so as to form a surface with excellent wear resistance, and the matrix is still using the composite pipe of ordinary metal.
- the use of tools to remove the surface of steel body clean.
- the raw materials can be used even after mixing.
- by the professional staff of the ceramic tube paste,
- to ensure that the phenomenon of the wrong side of the porcelain,
- ceramic tube surface to form a smooth surface.
- after passing the test storage.
Ceramic tile lined wear-resistant Features:
Ceramic tile lined pipe is our company to absorb similar products at home and abroad on the basis of advanced technology developed a shell for the steel body, within the wear-resistant ceramic tube of the new composite pipe products, with high wear resistance long service life And so on…
A new ceramic tip shape for a ceramic tile lined pipe
A conventional ceramic tip was arranged with a certain gap between tips in a steel pipe so that the pipe was damaged at the gap before the tip was worn out. The newly developed ceramic tip has a shape with no straight line portion parallel to the transport direction so that the steel pipe is protected until the tip is worn out.
Alumina ceramic tiles
Type of Ceramic tile
Advantages:
- Superior wear resistance
- Chemical and impact resistance
- Erosion acid, alkali resistance
- Smooth inner wall
- Easy installation
- Longer service lifetime
- Competitive and reasonable price
- Saved maintenance time and expenditure
The tailings that are in the pipeline hydraulic transport,wich are the phenomena known as the wear abrasion,fatigue,impact.
Have seen that,the use of a tube is 6mm in lenght,the pipe wall thickness was 20mm,and after 8 mounths of using,the bottom is correded till the pipehas 1mm of thickness.
The pipe lined by Sunny Steel has the advantage of the 3mm to 4mm of thickness after 12 mounth of use, ten times more than life to the pipe.Guaranteed protection against abrasion.
The direction of alignment of ceramics in zig zag,have excellent resistance tc friction of abrasive agents such as sand,gravel,gravel,tailings with solid particles,scale,coal,pulp, tailings from phosphate,salt slag, sludge,ash,..
A new ceramic tip shape
The wear resistant ceramic lining steel pipe feature
The wear resistant ceramic tile linedd pipe feature:
Wear resistant ceramic lining is AL203 as the main material, with rare metal oxide as solvent, after more than 1700℃ high temperature roasting to special ceramic, embedded into rubber , polyurethane or mild steel for the purpose of low to moderate impact and highly abrasive sliding application.
The ceramic lined pipe has a characteristic in its new shape of a ceramic tip for which we have applied for a patent.
