Description
|
ype |

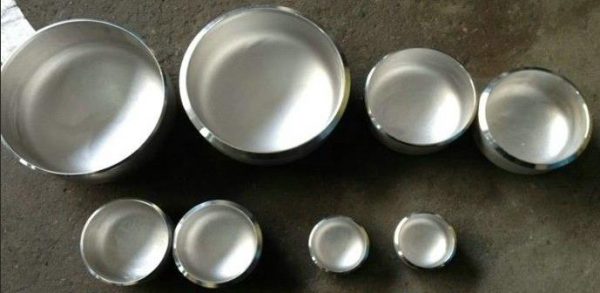

Butt welded Pipe Cap |
|
Size |
SMLS Elbow 1/2″~24″ (DN15 – DN600) Welded Elbow 1/2″~48″ (DN15 – DN1200) |
|
Wall thickness |
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, etc |
|
Standards |
ASME, ASTM, DIN, JIS, etc |
|
Material |
Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2,etc Stainless Steel: ASTM A182 F304/304L/316/316L, etc Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc. Duplex stainless steel: ASTM A182 F51/F53/F55/F60, etc Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800, Hastelloy C276, Hastelloy C22, Hastelloy B1/B2/B3, Alloy 20, etc Cu-Ni: 90/10,70/30, etc |
|
Surface treatment |
Transparent oil, rust-proof black oil or hot galvanized |
|
Applications |
Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc |
Dimensions Butt Weld Caps NPS 1/2 – 48 ASME B16.9
| NPS | O.D. D |
LENGTH H |
LENGTH H1 |
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 25 | 25 |
| 1 | 33.4 | 38 | 38 |
| 1.1/4 | 42.2 | 38 | 38 |
| 1.1/2 | 48.3 | 38 | 38 |
| 2 | 60.3 | 38 | 44 |
| 2.1/2 | 73 | 38 | 51 |
| 3 | 88.9 | 51 | 64 |
| 3.1/2 | 101.6 | 64 | 76 |
| 4 | 114.3 | 64 | 76 |
| 5 | 141.3 | 76 | 89 |
| 6 | 168.3 | 89 | 102 |
| 8 | 219.1 | 102 | 127 |
| 10 | 273 | 127 | 152 |
| 12 | 323.8 | 152 | 178 |
| 14 | 355.6 | 165 | 191 |
| 16 | 406.4 | 178 | 203 |
| NPS | O.D. D |
LENGTH H |
LENGTH H1 |
| 18 | 457 | 203 | 229 |
| 20 | 508 | 229 | 254 |
| 22 | 559 | 254 | 254 |
| 24 | 610 | 267 | 305 |
| 26 | 660 | 267 | |
| 28 | 711 | 267 | |
| 30 | 762 | 267 | |
| 32 | 813 | 267 | |
| 34 | 864 | 237 | |
| 36 | 914 | 267 | |
| 38 | 965 | 305 | |
| 40 | 1016 | 305 | |
| 42 | 1067 | 305 | |
| 44 | 1118 | 343 | |
| 46 | 1168 | 343 | |
| 48 | 1219 | 343 |
General notes..
- Dimensions are in millimeters unless otherwise indicated.
- Wall thickness (t) must be specified by customer.
- The shape shall be ellipsoidal and shall conform to the requirements given in the ASME Boiler and Pressure Vessel Code.
- Length (H) applies for thickness not exceeding that given in column “Wall Thickness” for Length, H.
- Length (H1) applies for thickness greater than that given in column “Wall Thickness” for NPS 24 and smaller. For NPS 26 and larger, length H1 shall be by agreement between the manufacturerand purchaser.
Dimensional Tolerances of End Caps ASME B16.9
| Nominal Pipe Size | 1/2 to 2.1/2 | 3 to 3.1/2 | 4 | 5 to 8 |
| Outside Diameter at Bevel (D) |
+ 1.6 – 0.8 |
1.6 | 1.6 | + 2.4 – 1.6 |
| Inside Diameter at End | 0.8 | 1.6 | 1.6 | 1.6 |
| Overall Length (H) | 3 | 3 | 3 | 6 |
| Nominal Pipe Size | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 |
| Outside Diameter at Bevel (D) |
+ 4 – 3.2 |
+ 6.4 – 4.8 |
+ 6.4 – 4.8 |
+ 6.4 – 4.8 |
| Inside Diameter at End | 3.2 | 4.8 | + 6.4 – 4.8 |
+ 6.4 – 4.8 |
| Overall Length (H) | 6 | 6 | 10 | 10 |
| Wall Thickness (t) | Not less than 87.5% of Nominal Wall Thickness | |||
Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.
Note..
MSS SP-43 only covers stainless steel buttweld fittings made for use with Schedule 5S and 10S pipe and Stub Ends suitable for use with Schedule 40S pipe, as defined in ASME B36.19. The dimensions and dimensional tolerances defined in MSS SP-43 are substantially the same as those in ASME B16.9 specifications from NPS 1/2 – NPS 24. Except with regard to the outside diameter at the bevel.
Weights of Buttweld Caps
SCHEDULE STD XS 160 XXS
| NPS | STD | XS | SCH 160 | XXS |
| 1 | 0.09 | 0.14 | 0.18 | 0.23 |
| 1.1/4 | 0.14 | 0.18 | 0.23 | 0.34 |
| 1.1/2 | 0.18 | 0.23 | 0.27 | 0.41 |
| 2 | 0.27 | 0.34 | 0.57 | 0.68 |
| 2.1/2 | 0.41 | 0.45 | 0.79 | 1.13 |
| 3 | 0.68 | 0.79 | 1.32 | 1.81 |
| 3.1/2 | 0.91 | 1.13 | – | 2.72 |
| 4 | 1.13 | 1.36 | 2.68 | 3.4 |
| 5 | 2.04 | 2.49 | 4.54 | 5.44 |
| 6 | 2.95 | 4.08 | 6.8 | 8.16 |
| 8 | 5.44 | 7.26 | 14.06 | 13.61 |
| 10 | 9.07 | 11.34 | 25.85 | – |
| 12 | 13.61 | 16.33 | 43.09 | – |
| 14 | 16.33 | 20.41 | – | – |
| 16 | 18.14 | 24.49 | – | – |
| 18 | 24.49 | 32.66 | – | – |
| 20 | 34.02 | 39.01 | – | – |
| 22 | 42.64 | 56.7 | – | – |
| 24 | 43.54 | 58.97 | – | – |
| 26 | 53.98 | 72.12 | – | – |
| 30 | 78.02 | 103.87 | – | – |
| NPS | STD | XS | SCH 160 | XXS |
Note..
- All weights are in pounds and kilograms and approximated or estimated.
Buttweld Fitting Weights
ASME buttweld fitting specifications do not specify weights for fittings. Weights quoted in the table on this page are based on manufacturers information and should be considered as approximate and provided as a guide only (fitting weights can vary considerably between manufacturers due to differences in construction).
